Rare Material Wire Mesh

Availability:
Inquire Add to Basket

Product Description

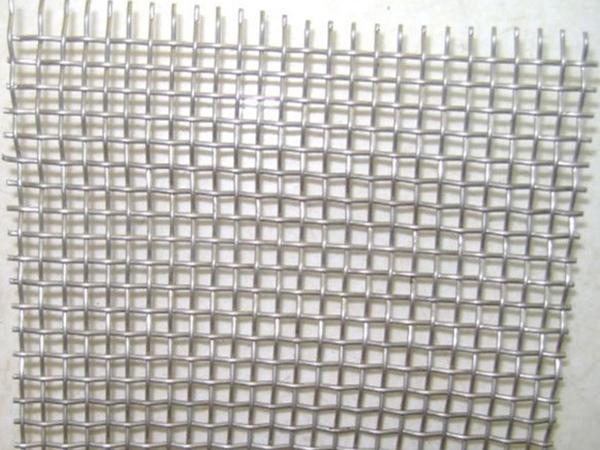

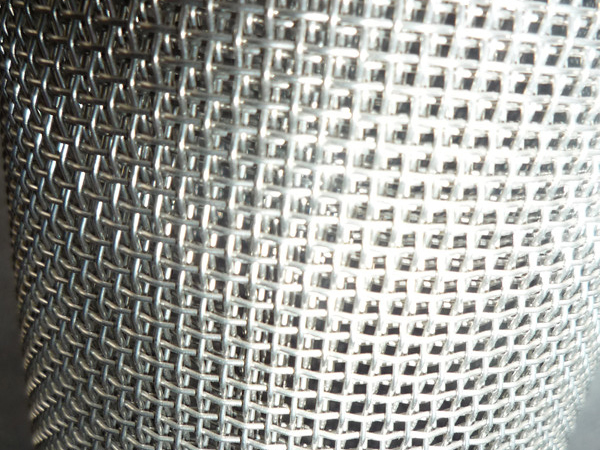

1. Titanium wire mesh:

Material:  TA1, TA2, GR2, GR3, R50250, Titanium alloy etc. Black pure titanium wire Ti ≥ 99.6% (Applies to ships,

water filtration and other industries) Bright pure titanium wire (For production of electrodes, battery collector net, fine

chemical filtration) Medical titanium wire (Applies to make medical apparatus and instruments)

Hole Shape:     square

Mesh Count:     0.2-100

Width:              5mm-2000mm

Weaving:          Plain weave, twill weave.

Mesh

Wire  diameter

Aperture/Opening

%Open Area

Inch

Mm

Inch

Mm

1x1

.080

2.03

.920

23.37

84.6

2X2

.063

1.60

.437

11.10

76.4

3X3

.054

1.37

.279

7.09

70.1

4X4

.063

1.60

.187

4.75

56.0

4X4

.047

1.19

.203

5.16

65.9

5X5

.041

1.04

.159

4.04

63.2

6X6

.035

.89

.132

3.35

62.7

8X8

.028

.71

.097

2.46

60.2

10X10

.025

.64

.075

1.91

56.3

10X10

.020

.51

.080

2.03

64.0

12X12

.023

.584

.060

1.52

51.8

12X12

.020

.508

.063

1.60

57.2

14X14

.023

.584

.048

1.22

45.2

14X14

.020

.508

.051

1.30

51.0

16X16

.018

.457

.0445

1.13

50.7

18X18

.017

.432

.0386

.98

48.3

20X20

.020

.508

.0300

.76

36.0

20X20

.016

.406

.0340

.86

46.2

24X24

.014

.356

.0277

.70

44.2

30X30

.013

.330

.0203

.52

37.1

30X30

.012

.305

.0213

.54

40.8

30X30

.012

.305

.0213

.54

40.8

30X30

.009

.229

.0243

.62

53.1

35X35

.011

.279

.0176

.45

37.9

40X40

.010

.254

.0150

.38

36.0

50X50

.009

.229

.0110

.28

30.3

50X50

.008

.203

.0120

.31

36.0

60X60

.0075

.191

.0092

.23

30.5

60X60

.007

.178

.0097

.25

33.9

70X70

.0065

.165

.0078

.20

29.8

80X80

.0065

.165

.0060

.15

23.0

80X80

.0055

.140

.0070

.18

31.4

90X90

.005

.127

.0061

.16

30.1

100X100

.0045

.114

.0055

.14

30.3

100X100

.004

.102

.0060

.15

36.0

100X100

.0035

.089

.0065

.17

42.3

100X100

.0035

.089

.0065

.17

42.3

Features

1 Titanium wire mesh is with low density and high specific strength.


2 Titanium wire mesh is with outstanding corrosion resistance. In the corrosion environment, the surface of high purity titanium mesh will form an oxidation film layer to protect wire mesh from being corroded, the layer is compact and inert, which has strong resistance to corrosion.


3 Titanium wire mesh has excellent corrosion resistant performance in below environment: Seawater, wet chlorine, chlorite and hypochlorite solution, nitric acid, chromic acid, metal chlorides and organic salts etc.

Applications

Titanium wire mesh can be used in shipbuilding, war industry manufacturing, chemical filter, mechanical filter,


desalination filter, high temperature vacuum equipment, medicine filtration industries etc.


2. Nickle wire Mesh:

nickel mesh can be divided into nickel woven wire mesh, nickel expended mesh, nickelperforated mesh, nickel knitted wire mesh. perforated mesh, nickel knitted wire mesh.

Introduction

· Material: Nickle wire

· Wire diameter:0.17mm-0.55mm

· Width: 40mm,80mm,100mm,150mm,200mm,300mm,400mm,500mm,600mm,800mm,1000mm,1200mm,1400mm

· Hole:2x3,4x5,6x12

· Surface:flat and undulation

Application


· Knitted wire mesh gasket

· Filter mesh for liquid and gas

· Filter cartridge

· Automotive sealing parts, shock (shock), silencers and exhaust purification components

· Electronics, electrical products anti-electromagnetic interference shielding devices

Specification


Type

Specification

Standard type

40-100   60-150 105-300   140-400  160-400  200-570

High-efficiency type

60-100  80-100 80-150 90-150 150-300 200-400 300-600

High-penetration type

20-100 30-150 70-400 100-600 170-560

Damping type

33-30 38-40 20-40 26-40 30-40 30-50 48-50 30-60 30-80 50-120

Packing

With carton

Min order

300meter


3. Monel Mesh:

Material

Common material:  Monel 400, Monel 401, Monel 404, Monel R405, Monel K-500

Special material:brass/phosohor bronze / monel /pure nickel /nichrome ect.

Wire diameter

0.5-2.03mm

Mesh  counts

2-200mesh

Surfuce

Smooth

Weave style

Plain weave Twill weave Dutch weave

Shape

square

Technique

weave

Feature

Monel wire mesh has the features such as: Superior corrosion resistance and acid-alkali resistance; High temperature resistance; Resistance to stress corrosion; High tensile strength; Excellent hardness.

Application

Monel wire mesh can be widely used in chemical and petrochemical industry and marine development etc. Monel wire mesh also can be used to manufacture all kinds of heat exchange equipment, pressure vessel, boiler feed water heater equipment, oil and chemical pipelines, containers, towers, tank, valves etc

Popular size


2mesh-200mesh

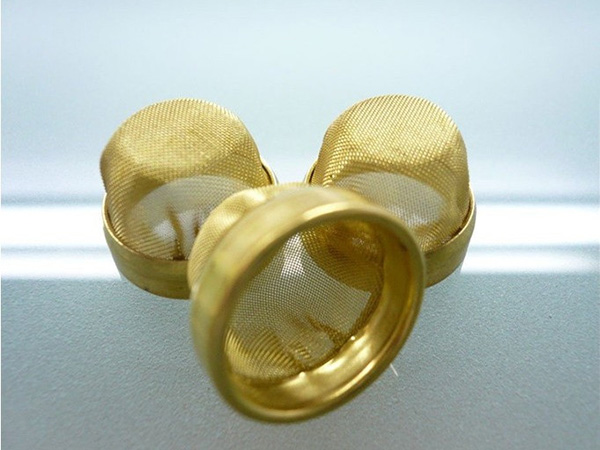

4. Copper Mesh:

Material: copper wire,brass wire,phosphor bronze wire


Feature:it is non-magnetic,anti-sparking and is resistant to atmospheric corrosion,salt air and brine


Usage: Separation and sifting kinds pellet,grain,porcelain earth and glass,chinaware printing,filter liquid etc.

Mesh/inch

Wire Diameter
(mm)

Aperture
(mm)

Mesh/inch

Wire diameter
(mm)

Aperture
(mm)

2mesh

1.80

10.90

40mesh

0.21

0.425

3mesh

1.60

6.866

50mesh

0.19

0.318

4mesh

1.20

5.15

60mesh

0.15

0.273

5mesh

0.91

4.17

70mesh

0.14

0.223

6mesh

0.80

3.433

80mesh

0.12

0.198

8mesh

0.60

2.575

90mesh

0.11

0.172

10mesh

0.55

1.99

100mesh

0.10

0.154

12mesh

0.50

1.616

120mesh

0.08

0.132

14mesh

0.45

1.326

140mesh

0.07

0.111

16mesh

0.40

1.188

150mesh

0.065

0.104

18mesh

0.35

1.060

160mesh

0.065

0.094

20mesh

0.30

0.970

180mesh

0.053

0.088

26mesh

0.28

0.696

200mesh

0.053

0.074

30mesh

0.25

0.596
